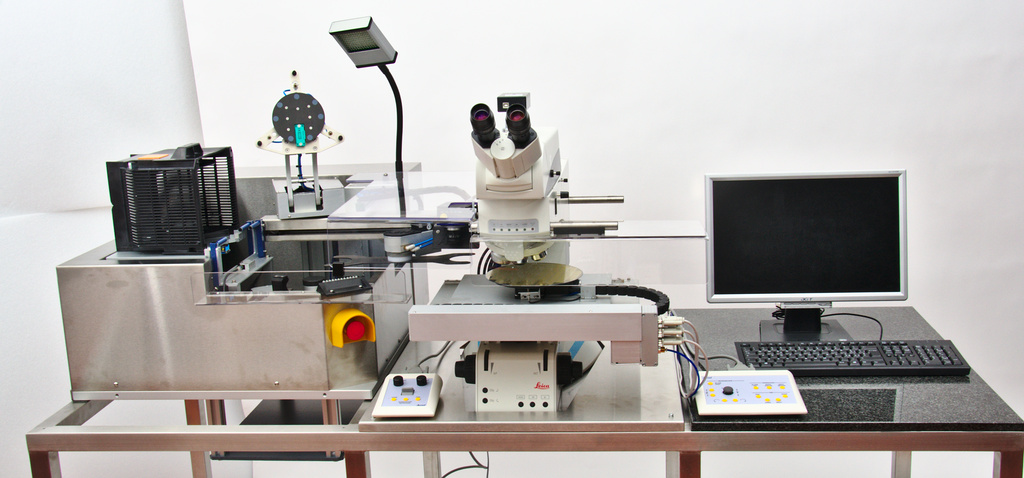

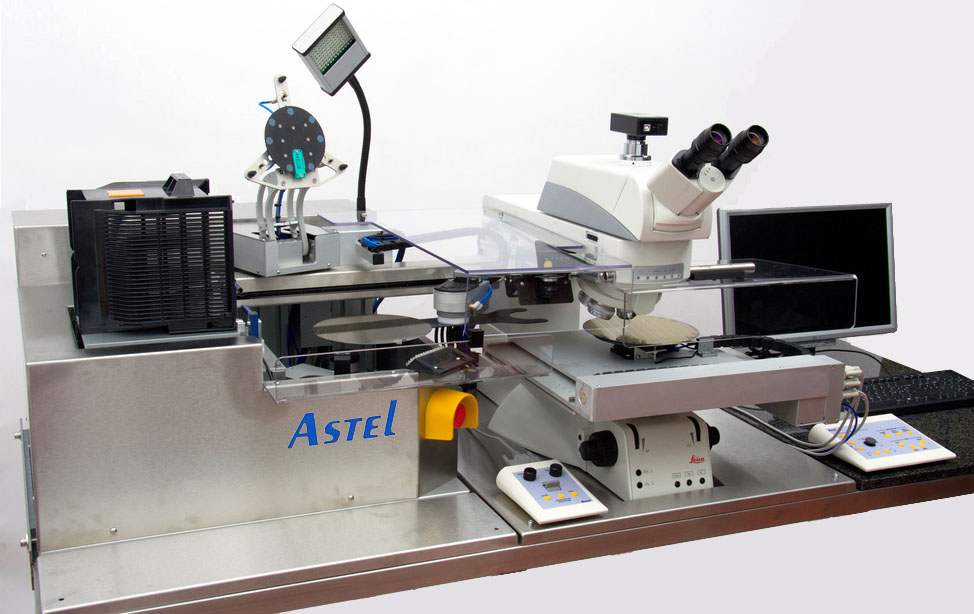

RMIL – Complete wafer inspection system
RMIL is an extremely powerful inspection system for silicon wafers with micro and macro inspection loader.
RMIL includes a powerful inspection software, an image acquisition system and a special motorized XYZ(R) microscope stage which can be mounted on semiconductor inspection microscopes.
It has been designed for Leica Microsystems DM8000 and it can be used with microscopes of several brands like Nikon, Olympus, Zeiss.

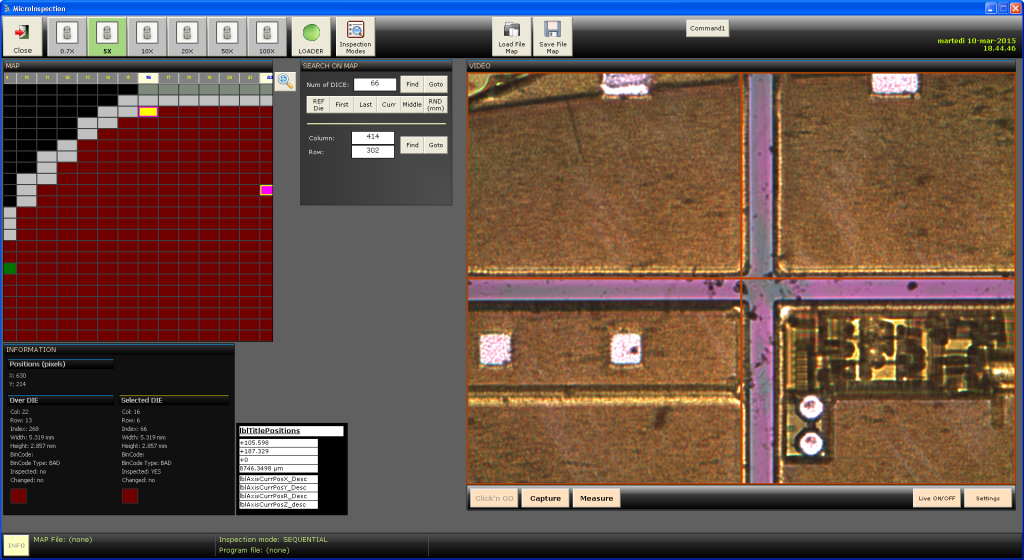

Defect analysis software
It is possible to automatically identify and download wafer maps, inspect wafer dice and modify
each die BINCODE, save and store pictures, take measures with exceptional resolution, scan wafers and much more.
This system can be completed by a full set of modules like OCR wafer ID readers, high resolution cameras, SECS-GEM interface.
RMIL is compatible with wafer maps according to SEMI standard and it can be customized on request.
Specifications
- Three axes, motorized microscope stage , X,Y and R with resolution better than 1μm and 0.01° (depending on version)
- Standard Windows, PC based controller
- Image acquisition USB devices – high resolution mode from 3 Mpx
- Large, high resolution PC monitor
- Full set of inspection type come as standard: single die random access, sequential scan, manual, BINCODE management.
- Map type according to SEMI standard, custom formats on request
- Map download/upload through TCP/IP, local mode
- Non contact, optical wafer centering and alignment
- Designed for Leica DM8000, compatible with many semiconductor inspection microscopes
- Image driven autofocus
- Position display of all positions and parameters. On screen measurement functions

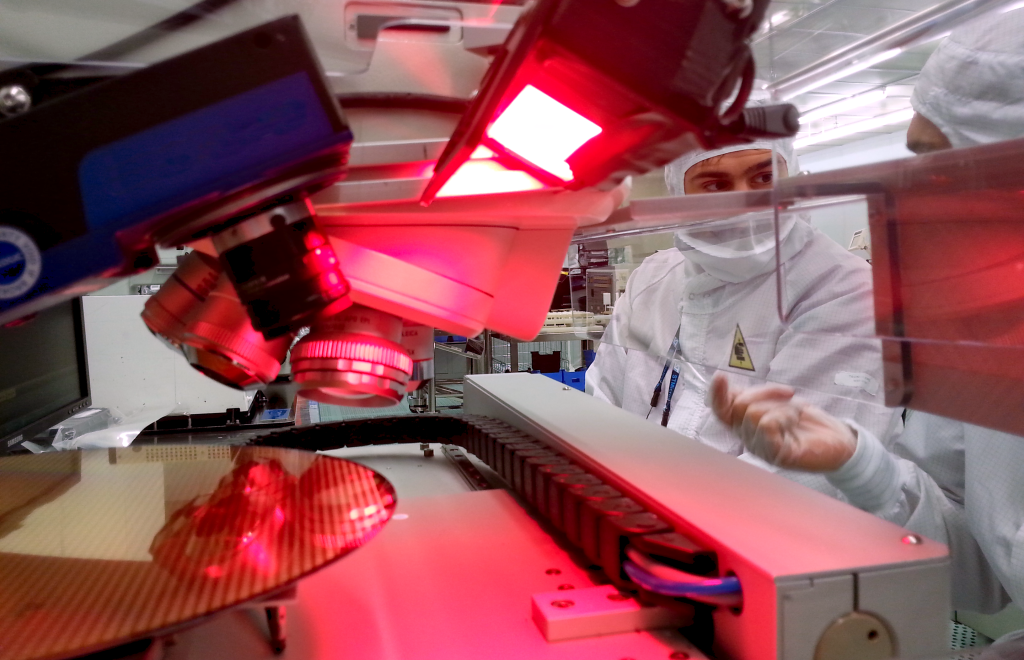

- Optional ID reader OCR reader with LED illuminator
